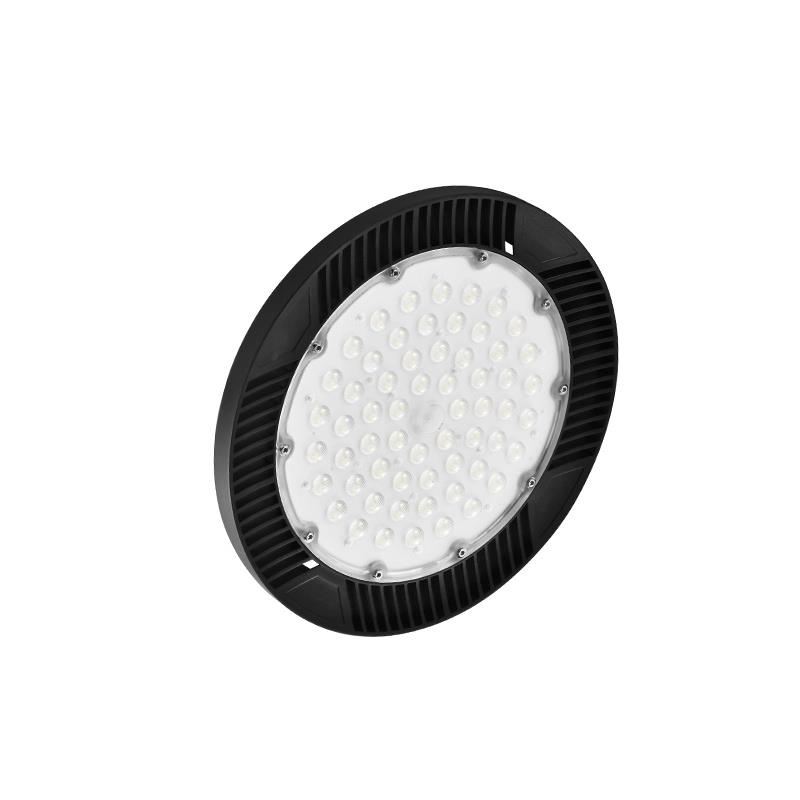

Circular wave point +PC lens, die-cast aluminum integrated structure

HomeProductsLED Outdoor LightingLed high bay Circular wave point +PC lens, die-cast aluminum integrated structure
HomeProductsLED Outdoor LightingLed high bay Circular wave point +PC lens, die-cast aluminum integrated structure

Circular wave point +PC lens, die-cast aluminum integrated structure

Brand driven
Optical PC lens
Five year warranty
Die cast aluminum lamp body

Feature

  • 5 years Warranty

  • Optical PC lens, high light transmission, good light efficiency

  • Die-cast aluminum lamp body, fast heat dissipation, reduce the possibility of light decay

  • Brand driven, constant current stability and security

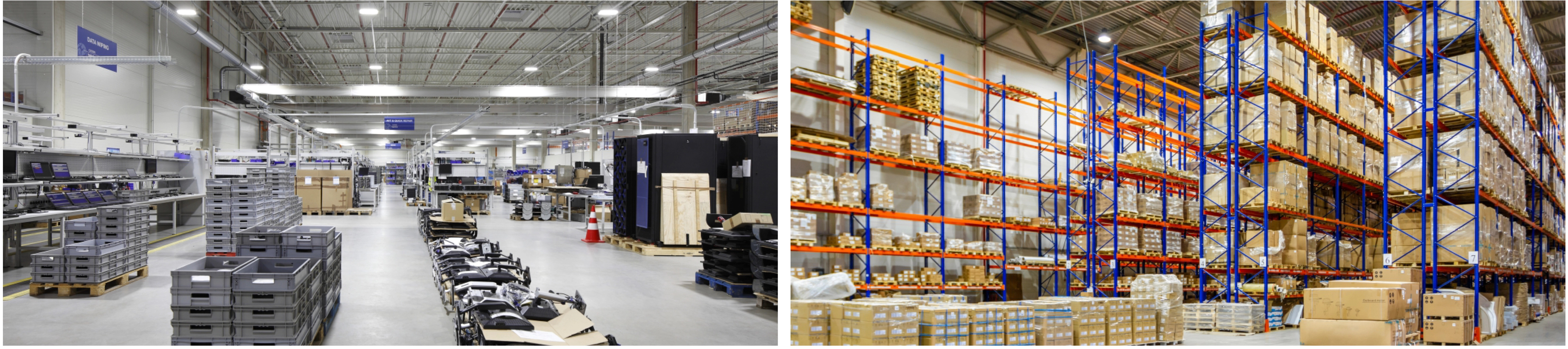

Application

  • Factory

  • Workshop

  • Large furniture purchasing factory

  • Logistics transfer center

  • Streetscape light

Data

Item No. Power Voltage Luminous efficiency Size
HYD-709-100W 100W 220-240V 120 lm/w 260*93mm
HYD-709-150W 150W 220-240V 120 lm/w 300*93mm
HYD-709-200W 200W 220-240V 120 lm/w 350*93mm



High Bay, also called high ceiling lamp. This is a low power high light efficiency indoor and outdoor lamps. It can be used in industrial plants, production workshops, gymnasiums, badminton halls, logistics centers, warehousing centers and other large places.



1. The installation position of the high bay is usually arranged on the top of the site, with the installation mode of embedding, ceiling absorption and hoisting, which has a large irradiation area and reduces the dark area of the space.

2. The use of die-cast aluminum material, fast heat dissipation, effectively reduce the possibility of light decay, extend the service life of the lamp, to reach the level of five years of warranty.

3. The protection level reaches IP65, and it can also work normally in harsh environments.



High Bay use LED directional light, low energy consumption, long life, fast response, it is the best choice for large factories and center lighting.

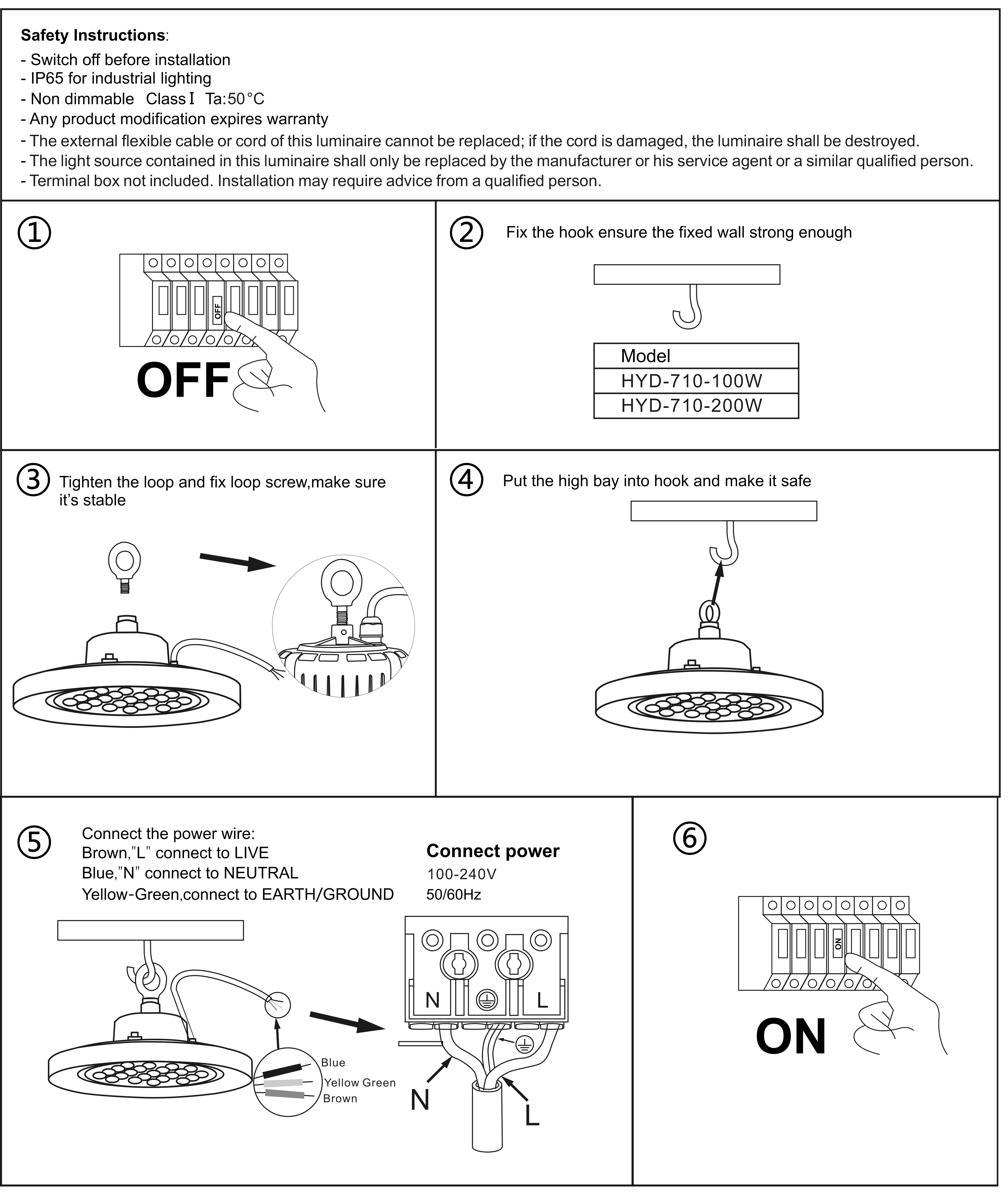

Installation:Suspension

Package Data

Product code Packaging unit(pieces/Unit)

Dimensions

(length x width x height)

Volume
709-100W Master carton 29*29*13.5 cm 0.01135
1
709-150W Master carton 33*33*13.5 cm 0.01470
1
709-200W Master carton 38*38*13.5 cm 0.01949
1



Master carton
