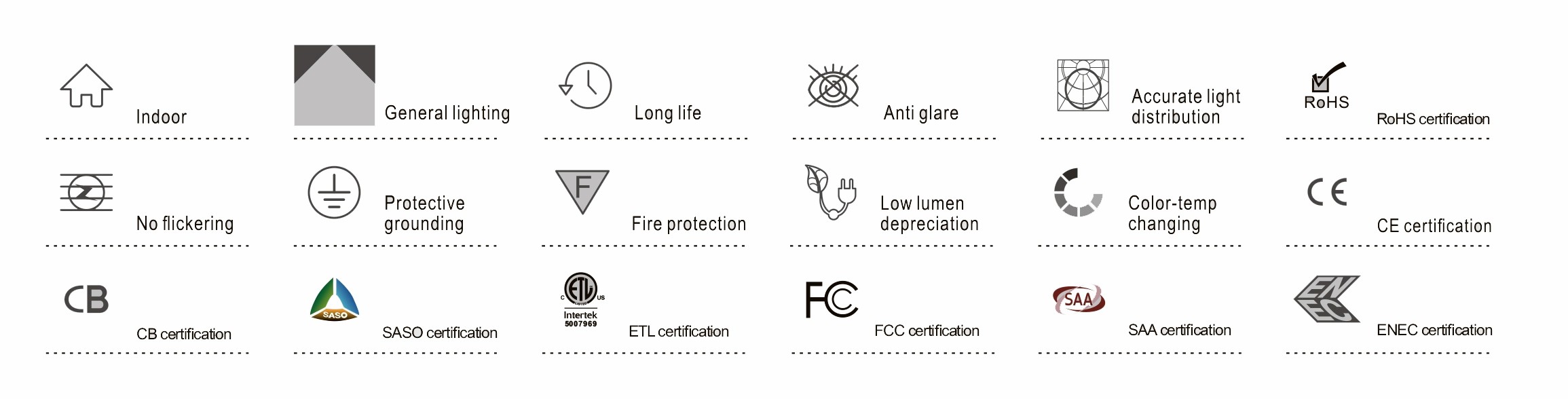

Feature
Thickness <35mm, to adapt to the low ceiling
A variety of power flexible options
Precision integrated aluminum design

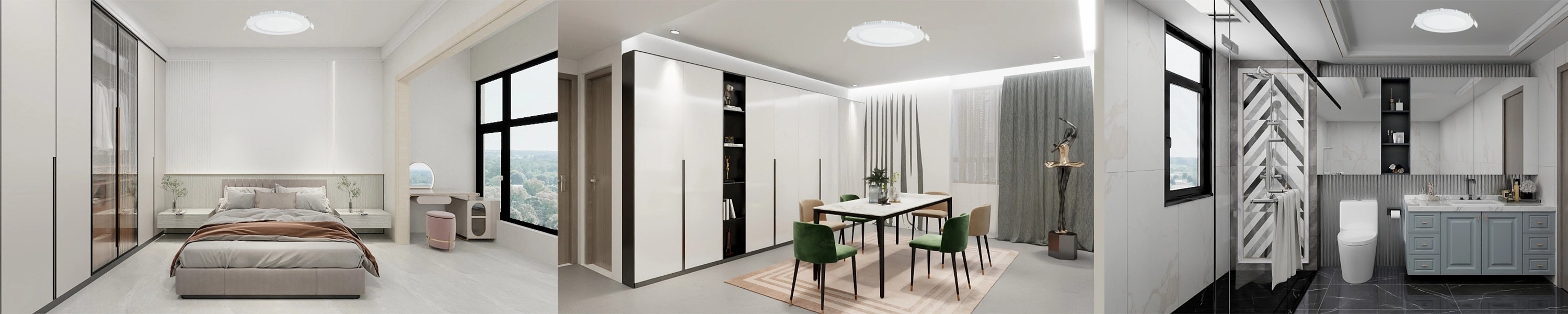

Application
Classroom
supermarket
restroom
Aisle
Data
Item No. |
Power |
Voltage | luminous efficieny |
Size |
Cut out |
HYD-102R-4W |
4W |
110-240V/220-240V | 90-100 lm/w |
109*35mm |
90mm |
HYD-102R-6W |
6W |
110-240V/220-240V | 90-100 lm/w |
120*35mm |
105mm |
HYD-102R-9W |
9W |
110-240V/220-240V | 90-100 lm/w |
146*35mm |
130mm |
HYD-102R-12W |
12W |
110-240V/220-240V | 90-100 lm/w |
173*35mm |
160mm |
HYD-102R-18W |
18W |
110-240V/220-240V | 90-100 lm/w |
225*35mm |
205mm |
HYD-102R-20W |
20W |
110-240V/220-240V | 90-100 lm/w |
237*35mm |
220mm |
HYD-102R-24W |
24W |
110-240V/220-240V | 90-100 lm/w |
300*35mm |
285mm |

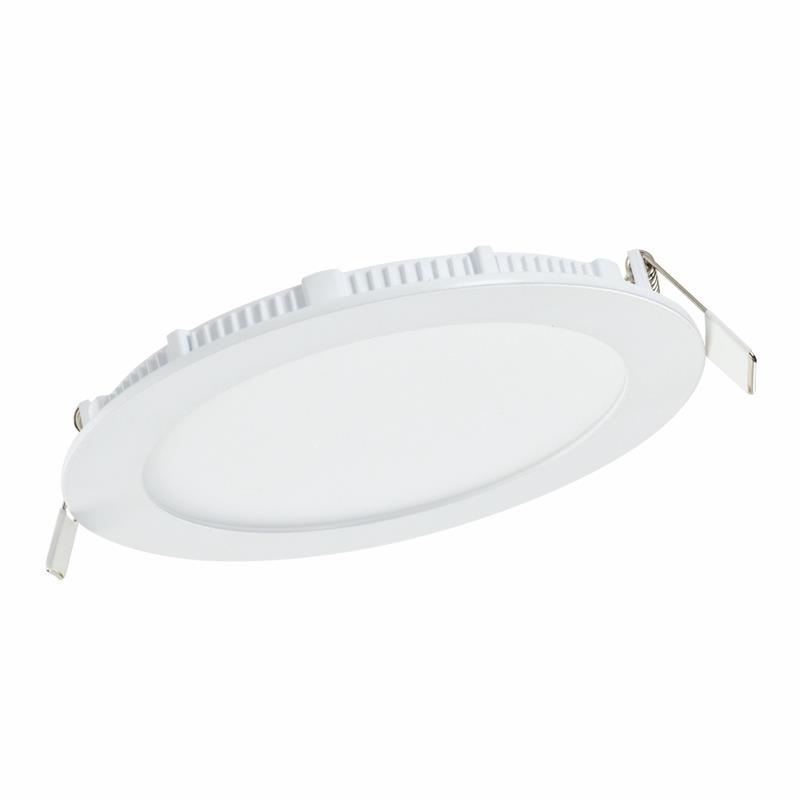

HYUNDAI Lighting products, there is an ultra-thin small panel light.
It has won the love of many consumers with its unique design, excellent performance and environmental protection characteristics. The design of the small panel light is mainly embedded, which is not only beautiful, but also easy to install, making it widely used in various places.
1. Advanced LED technology to create excellent lighting effect
The ultra-thin small panel light is made of advanced LED technology, and the LED lamp beads have the advantages of high brightness and low energy consumption, making the lighting effect more excellent. At the same time, LED lamp beads have a long life and strong stability, and can maintain stable performance during long-term use. This makes small panel lights the most popular lighting equipment in offices, shopping malls, schools and other places.
2. Light body thin design, easy to install and application
Another feature of the small panel light is its thin design. Because of this, it is very easy to install, can be easily embedded in various occasions of the wall or ceiling, suitable for low ceilings. Its high-brightness lights can illuminate the entire space, providing a comfortable working and learning environment for people. In addition, the small panel light also has excellent energy-saving and environmental protection characteristics, in line with the development trend of green environmental protection in today's society.
3. Meet diverse needs and have a wide range of applications
Ultra-thin small panel lights not only have good lighting effects, but also can meet the lighting needs of different occasions. Whether it is commercial or home, it can give full play to its advantages and bring the ideal lighting experience to users. In the home environment, small panel lights can improve the comfort and beauty of the living room; In commercial places, it can provide businesses with efficient lighting solutions to help save energy and reduce emissions.
In summary, the ultra-thin small panel light with its advanced technology, excellent performance and environmental protection characteristics, whether in the home or commercial field, it can meet the lighting needs of consumers, for people to create a comfortable, bright, environmentally friendly living and working space. With people's pursuit of green life, the market prospects of small panel lights will be broader.
Installation-Recessed
Package Data
Product code |
Packaging unit (pieces/Unit) |
Dimensions (length x width x height) |
Volume |
HYD-102R-3W |
Graphic carton |
13.5*12*3.5 cm | 0.00057 |
50 |
|||
Master carton | 62*19.5*29.5 cm | 0.03567 | |
1 | |||
HYD-102R-4W |
Graphic carton |
14.5*13.5*4 cm | 0.00078 |
50 |
|||
Master carton | 69.5*22*31.5 cm | 0.04816 | |
1 | |||
HYD-102R-6W |
Graphic carton |
15.5*14.5*4 cm | 0.00090 |
50 |
|||
Master carton | 74.5*22*33.5 cm | 0.05491 | |
1 | |||
HYD-102R-9W |
Graphic carton |
18*17*4 cm | 0.00122 |
30 |
|||
Master carton | 53*20*42.5 cm | 0.04505 | |
1 | |||
HYD-102R-12W |
Graphic carton |
21*21.5*3.5 cm | 0.00158 |
20 |
|||
Master carton | 45*23*37.5 cm | 0.03881 | |
1 | |||
HYD-102R-15W |
Graphic carton |
24*23*4 cm | 0.00221 |
20 |
|||
Master carton | 48*26*42.5 cm | 0.05304 | |
1 | |||
HYD-102R-18W |
Graphic carton |
27*25*3.5 cm | 0.00236 |
20 |
|||
Master carton | 52*29*37.5 cm | 0.05655 | |
1 | |||
HYD-102R-20W |
Graphic carton |
28*26*3.5 cm | 0.00255 |
20 |
|||
Master carton | 54*30*37.5 cm | 0.06075 | |
1 | |||
HYD-102R-24W |
Graphic carton |
32.5*31.5*4.5 cm | 0.00461 |
10 |
|||
Master carton | 47*33.5*35 cm | 0.05511 | |
1 |

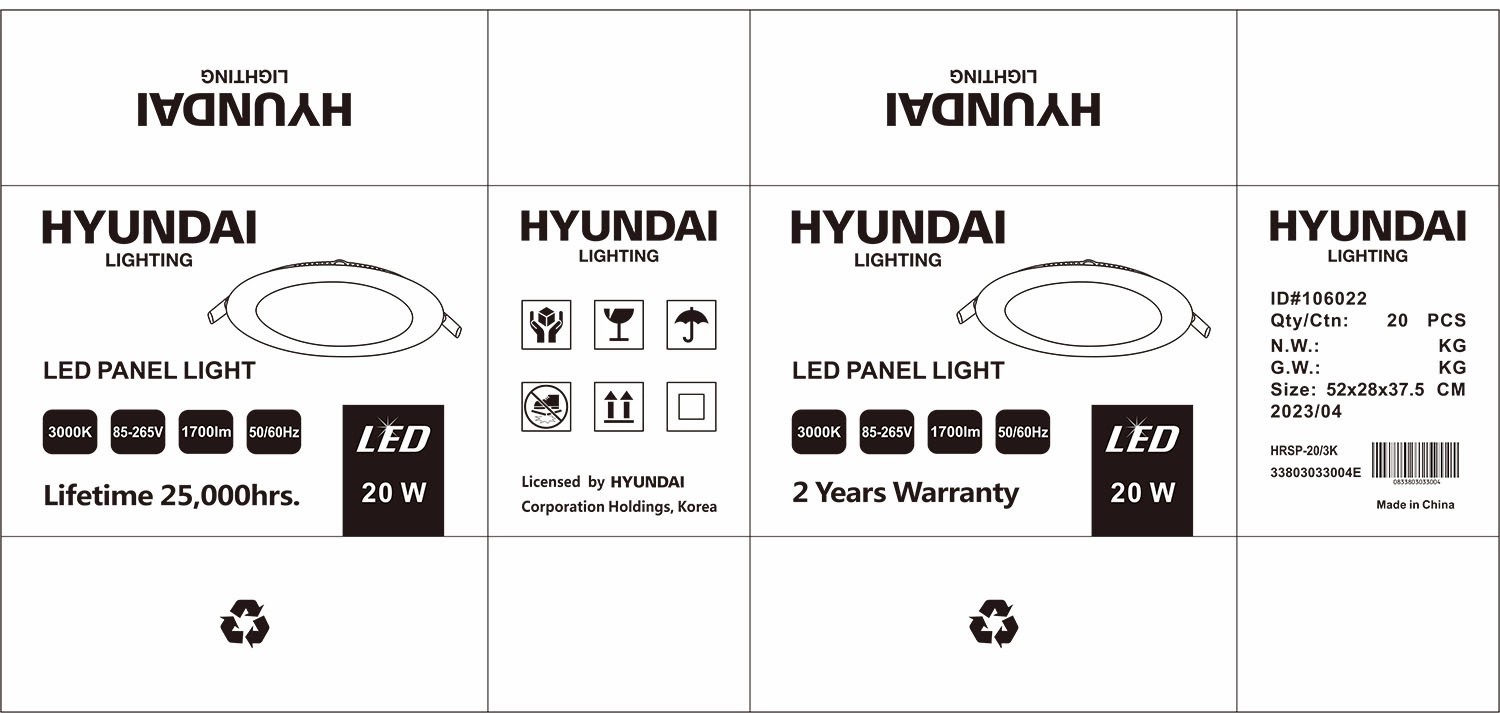

Graphic carton
Master carton
