A magnetic lamp that emits uniform flooding light-HF22Y

High security
High installation efficiency
48V low voltage reduces the risk of electric shock

Feature

  • High appearance level, wide application

  • It has a decorative effect to create a different indoor atmosphere

  • 48V low voltage design, high safety performance, not easy to electric shock

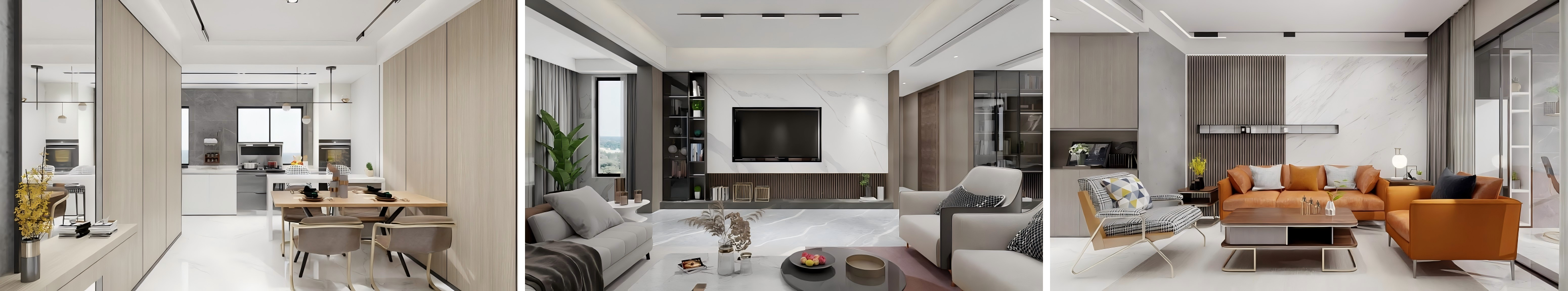

Application

  • Home

  • Shop

  • boutique

  • Outfit shop

  • Exhibition hall

  • Ambience restaurant







Data

Item No. Power Voltage Luminous efficiency Size
HF22Y-P30-14W 14W 48V 75-90 lm/w 300*23*25 mm
HF22Y-P60-24W 24W 48V 75-90 lm/w 600*23*25 mm
HF20Y-P120-45W 45W 48V 75-90 lm/w 1200*23*25 mm



No main light design as the trend of modern decoration design, with its unique concept and convenient installation, is gradually sought after by the industry and the favor of users. The magnetic lamp occupies an important position in the lamps without the main lamp design.



The magnetic lamp uses the magnetic principle to accurately adsorb the lamp component on the preset track. This innovative design greatly simplifies the operation process and significantly improves the installation efficiency compared to the traditional rail lamp installation method.

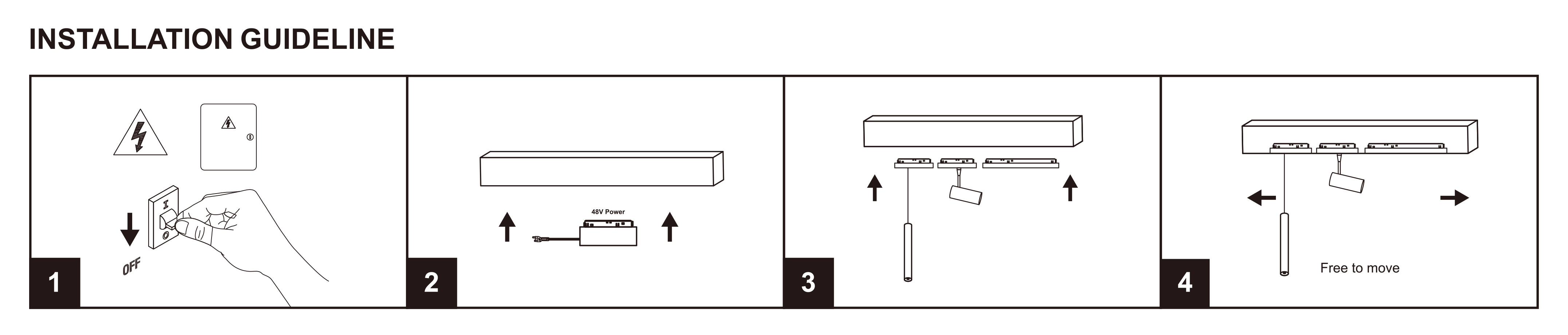

In the installation mode, three options can be used: embedded trackSurface track mounted and suspended magnetic rail to adapt to different environments and use needs.



Embedded track design, concealment, suitable for the pursuit of simple, low-key style decoration projects; Open-mounted track is magnificent, is the ideal choice for luxury, retro style decoration; The suspended magnetic rail shows the characteristics of lightness and agility, which perfectly fits the modern and fashionable decoration style.



In addition, the 48V low-voltage design of the magnetic lamp greatly reduces the risk of electric shock during installation and use, and has a high safety.

Package Data

Product code

Packaging unit

(pieces/Unit)

Dimensions

(length x width x height)

Volume/CBM

HF22Y-P30-14W

Graphic carton

30*5*3 cm 0.00045
50

Master carton

32.5*27*32 cm 0.02808
1
HF22Y-P60-24W Graphic carton 59*5*3 cm 0.00089
30
Master carton 32.5*17.5*61 cm 0.03469
1
HF20Y-P120-45W

Graphic carton

116.5*5*3 cm 0.00175
6

Master carton

119*11*12.5 cm 0.01636
1



Graphic carton





Master carton
